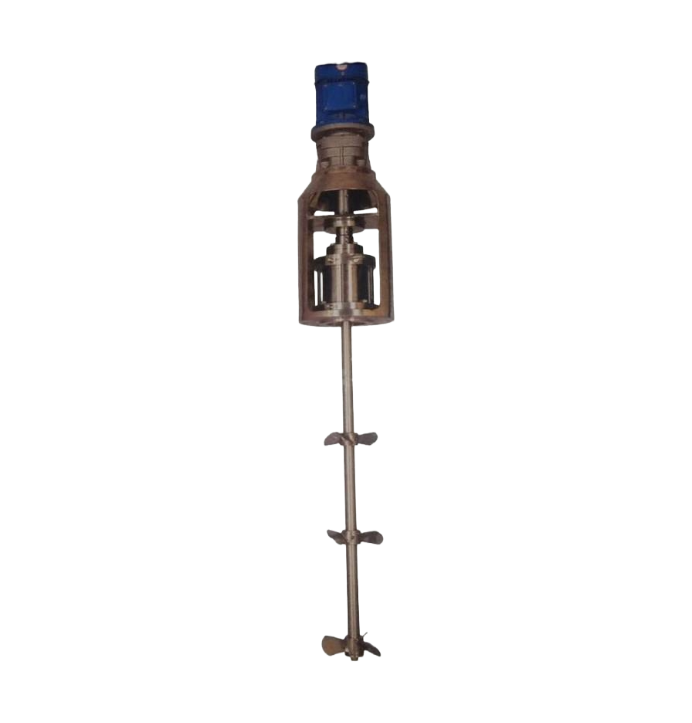

Turbine Type Agitator

Turbine Type Agitators deliver high-speed, efficient mixing and dispersion for process liquids, with robust construction, customized designs, and reliable performance across demanding industrial applications efficiently.

High-Speed Mixing With Superior Dispersion

High Performance Turbine Mixing

Turbine Type Agitators are engineered for high-speed mixing, dispersion, and homogenization of process liquids. Custom turbine geometry, dynamic balancing, and robust materials support reliable operation across demanding applications, with speeds up to 3000 RPM and customized configurations for diverse requirements.

Turbine Type Agitator
High Speed
Reliable
Custom Built
Industrial
Turbine Type Agitator Specifications
Specification Details
Agitator Type Turbine Type Agitator
Service Product Normal to high viscosity
Product Type / Size Liquids
Working Pressure Atmospheric to 400 bar
Working Temperature Ambient to 250°C
Tank Working Volume 200 gram to 30 kL
MOC of Equipment MS, Stainless Steel 304, 316 and Special Alloy
Working Batch Time 24 hours
Agitator RPM 5 to 3000 RPM
Impeller Diameter With Pitch Impeller OD 25 mm to 2500 mm
Power Phase & Pole Single Phase and Three Phase
Low RPM / High RPM Available in Low and High RPM
Available MOC SS 304, 304L, 316, 316L, 310 and MS

Frequently asked questions

Get quick answers to the most common questions about Turbine Type Agitators, their applications, features, materials, and performance.

What is a Turbine Type Agitator and where is it used?

A Turbine Type Agitator is a high-speed mixing device designed for efficient blending, dispersion, emulsification, and suspension of liquids. It is widely used in chemical, pharmaceutical, food processing, paint, fertilizer, wastewater treatment, and specialty chemical industries where uniform mixing is essential.

Durga Technology Corporation manufactures Turbine Type Agitators using premium quality materials including SS 304, SS 304L, SS 316, SS 316L, SS 310, Mild Steel (MS), Hastelloy, Titanium, and other special alloys depending on the chemical compatibility and process requirements.

Yes. Every process has unique mixing requirements. We design and manufacture customized turbine agitators by selecting the appropriate turbine type, blade design, shaft length, sweep diameter, speed (RPM), and material of construction to achieve optimum mixing efficiency.

Dynamic balancing minimizes vibration during high-speed operation. This improves mixing performance, reduces wear on bearings and motors, extends equipment life, lowers maintenance costs, and ensures smooth, reliable operation even at higher RPMs.

The ideal agitator depends on factors such as tank size, liquid viscosity, density, mixing objective, operating temperature, pressure, and required RPM. Our engineering team evaluates your process details and recommends the most suitable agitator design for maximum efficiency.

Yes. Depending on your application, we manufacture agitators using corrosion-resistant materials such as SS316L, Hastelloy, Titanium, and other special alloys. Material selection is based on the process fluid, operating temperature, and chemical compatibility.

Our Turbine Type Agitators are widely used in chemical plants, pharmaceutical manufacturing, food and beverage processing, dairy, paints and coatings, petrochemical industries, fertilizers, cosmetics, wastewater treatment plants, and specialty chemical processing units.

Routine inspection of bearings, seals, shaft alignment, motor coupling, and lubrication is generally sufficient. Regular preventive maintenance ensures smooth operation, reduces downtime, and significantly increases the service life of the agitator.

Durga Technology Corporation designs and manufactures high-quality industrial agitators tailored to customer requirements. Our products are built using premium materials, precision engineering, dynamic balancing, and strict quality standards to deliver reliable performance, long service life, and efficient mixing across a wide range of industrial applications.
