BOX SPLIT TUBE FURNACE

The Box Split Tube Furnace delivers precise, uniform heating with flexible vertical or horizontal mounting, multi-zone control, and temperatures up to 1600°C for demanding applications.

Advanced Heating With Precise Temperature Control

Precision Heating For Research Applications

The Box Split Tube Furnace provides controlled, uniform heating for research and industrial processes. Its split-tube design enables convenient heating-zone access while supporting controlled atmospheres, multiple zones, flexible mounting, and PID or SCADA-based temperature management for demanding applications.

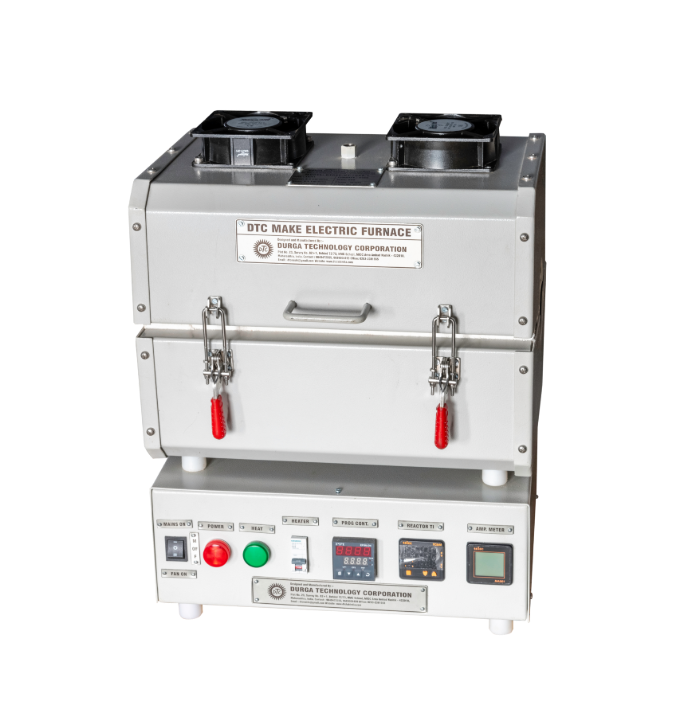

Box Split Tube Furnace
Uniform Heating
Up To 1600°C
Multi-Zone Control
PID & SCADA
Box Split Tube Furnace Specifications
Specifications Details
Furnace Type Box Type Split Tube Furnace
Mounting Position of Furnace Vertical and horizontal
Duty Cycle of Furnace More than 24 hours
Design Temperature Up to 1600°C
Zone Quantity Multiple zones or dependent upon buyer requirements
Thermowell Quantity Multiple thermowells or dependent upon buyer requirements
Hot Zone Length Minimum 100 mm and above
Pole / Phase Single to triple pole
Heating Tube Dimensions O.D. and Length 1/8" and above; length 150 mm and above
Furnace Length 150 mm and above
MOC of Furnace Body SS and MS
MOC of Heating Element Kanthal A1, Nickel Chromium, MoSi₂, Silicon, and Ni-Chrome
Control PID and SCADA control

Frequently Asked Questions

Get quick answers to the most common questions about Box Split Tube Furnace, its features, applications, and performance.

What is a Box Split Tube Furnace and what is it used for?

A Box Split Tube Furnace is a high-temperature heating system designed for precise and uniform heating of samples. It is widely used in research laboratories, material testing, heat treatment, sintering, annealing, calcination, and experiments requiring a controlled atmosphere.

The split tube design allows quick access to the heating chamber without disturbing the complete setup. It simplifies sample loading, tube replacement, maintenance, and cleaning while ensuring excellent temperature stability and operational convenience.

These furnaces are commonly used in metallurgy, ceramics, nanotechnology, semiconductor manufacturing, universities, research laboratories, chemical processing, and advanced material development where precise thermal processing is essential.

Yes. Our Box Split Tube Furnace can be configured to work with inert or controlled gases such as nitrogen, argon, or other process gases, making it suitable for oxidation-sensitive materials and specialized heat treatment applications.

We manufacture Box Split Tube Furnaces in multiple temperature ranges to suit different applications. Standard and customized models are available depending on your process requirements. Please contact our team for specifications tailored to your application.

Our furnaces are equipped with advanced digital PID temperature controllers that provide precise temperature regulation and excellent heating uniformity. This ensures reliable and repeatable results for laboratory and industrial applications.

Absolutely. Durga Technology Corporation offers customized solutions including chamber size, tube dimensions, maximum temperature, controller options, heating zones, gas inlet arrangements, and other features to match your specific research or production needs.

Yes. The split construction makes routine maintenance, tube inspection, and component replacement quick and convenient. Regular cleaning and periodic inspection help maintain consistent performance and extend the furnace's service life.

Durga Technology Corporation designs and manufactures reliable, high-quality heating equipment using premium materials and advanced engineering practices. We provide customized solutions, quality assurance, technical guidance, and dependable after-sales support to ensure long-term customer satisfaction.
